Auto-darkening laser helmet StigrayY®
Code: KWXSTINGRAYY
_en.png?678531f8)
Related products
Product detailed description
This complete solution is a combination of a helmet shell made of special material, a laser shield and a welding automatic blackout filter. It is able to protect the user's eyes and face from scattered laser light and from optical radiation generated during the welding process.
- Designed for 1060-1090nm handheld laser welding systems (fiber lasers)

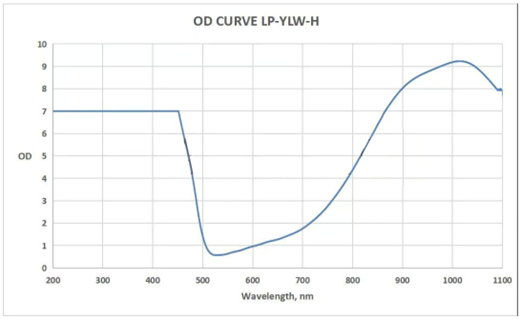

- Marking according to EN207:
- 900-1100nm OD8+
- 900-1100nm D LB6 + IR LB8 LP S CE
- Extended eye and face protection
- Laser protection filter with wide absorption range (900-1100nm)
- Self-dimming welding filter (ADF), DIN4 bright state
- Light weight for maximum comfort during long term use
- Regulating system for adjusting the height and inclination of the helmet.
- Headgear with gas adjustable
- Automatic dimming.
|
Optical grade: |
1 / 1 / 1 / 2 |
|
Field of view: |
98 x 87mm |
|
Laser light filter thickness: |
3.5mm (polycarbonate) |
|
Filter cartridge size: |
114 x 133 x 9mm |
|
Number of sensors: |
4 |
|
Aperture brightened: |
DIN 4 |
|
Aperture: |
Variable DIN 4~8, 9~13 |
|
Aperture control: |
Internal, variable |
|
On/Off: |
With GAS automatic |
|
Sensitivity setting: |
Adjustable internally by potentiometer |
|
UV/IR protection: |
Up to DIN16 aperture permanently |
|
Power source: |
Solar cell + 1xCR2450 replaceable lithium battery |
|
Low battery indicator: |
YES |
|
Realistic colors: |
YES |
|
Darkening speed: |
0.1ms from light to dark |
|
Delay (dark to light): |
0.1~1.0s adjustable internally by potentiometer |
|
Grinding |
YES ( externally controlled) |
|
Operating temperature: |
-10°C ~ +60° |
|
Storage temperature: |
-20°C ~ +70°C |
|
Material of the helmet: |
Nylon (High Impact Resistant Polyamide) |
|
Total weight: |
525g |
|
Range of use: |
LASER WELDING, Grinding |
|
Certified: |
CE, EN175B, EN379, EN166 |
Additional parameters
| Category: | Laser welding |
|---|---|
| Weight: | 0.7 kg |
| EAN: | 7453141640094 |
| Model: | KWXSTGLSTINGRAYY |
| Optická třída EN379: | 1/1/1/2 |
| Vhodná pro metody: | Laserové svařování+Broušení |
| Rozměr zorného pole: | 98 x 87mm |
| Počet senzorů: | 4 |
| Clona při rozjasnění DIN: | 4 |
| Ochrana pře UV/IR zářením: | DIN 16 |
| Rozsah clony DIN: | 4-8 / 9-13 |
| Prodleva před rozjasněním: | 0,1 - 1s |
| Režim broušení: | ANO |
| Indikátor stavu baterie: | ANO |
| Solární panel: | ANO+výměnná lithiová baterie 1xCR2450 |
| Materiál: | Nylon |
| Pracovní teplota: | -10°C / +55°C |
| Hmotnost: | 0,525 |
| The item has been sold out… | |
